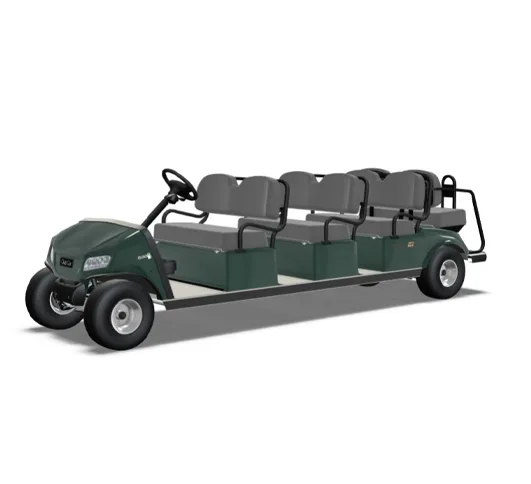

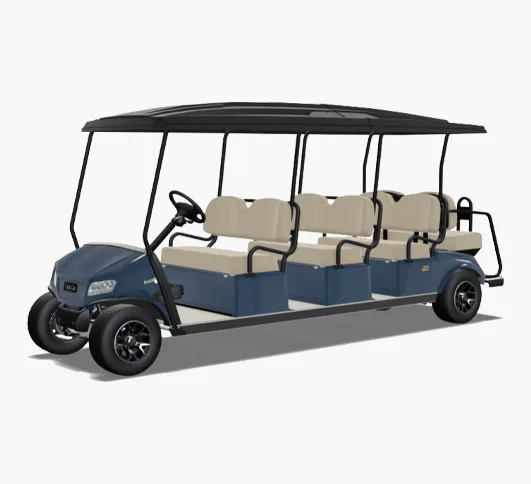

Club Car Villager 8
Move larger groups with ease in the Club Car Villager 8, the perfect vehicle for tours, shuttles and resort transportation. Whether you choose the gas or the electric model, your vehicle is equipped with the power to transport your customers and guests quickly and efficiently.

Safety, comfort and durability come standard: impact and UV resistant body panels; specially-designed ergonomic seats that guarantee a comfortable ride; and our exclusive aluminum chassis that eliminates rust and corrosion, extending the Club Car Villager 8's lifespan significantly.
Features

Subaru EFI Engine
You'll get more power and efficiency from your Carryall utility vehicle with our new Subaru 404cc overhead cam engine with electronic fuel injection. It boosts horsepower by more than 30 percent and increases fuel efficiency by almost 50 percent over our previous gasoline engines.

Aluminum Frame & Chassis
Your Club Car vehicle is built from the ground up for quality and endurance with our exclusive aircraft grade all-aluminum rust-proof fram and chassis. This rustproof, corrosion resistant frame is lightweight and strong and carries a 3-year warranty.

IQ Plus
The IQ Plus drive system enables electric utility vehicles to handle many of the tough jobs that once required the strength of gasoline-powered vehicles. The 48-volt system continually provides testing and diagnostic feedback, so you can adjust performance settings based on user needs.
Specifications





Electric


Gasoline


Engine**/Motor Type


48-volt DC


Subaru, 4-cycle EFI


Controller


500 Amp - Solid State


NA


Displacement


NA


404 cc


Cylinders


NA


Single


Valving


NA


Overhead Cam


Cooling


NA


Air Cooled


Horsepower (Rated)


3.7 hp (2.7kW) rated, Peak 20 hp (14.9 kW)


14.0 hp (10.3 kW) rated @ 3600 RPM per SAE J1940


Max Torque


71 ft-lb (96.2 N-m) rated @ 1450 rpm


19.91 ft lb (27.0 N-m) rated @ 2400 RPM


Lubrication


NA


Splash lubrication


Governor


NA


Ground Speed


Transmission


Direct drive, double reduction
helical gear


Continuously Variable
Transmission (CVT)


Gear Selection


Forward/Neutral/Reverse


Forward/Neutral/Reverse


Gear Ratio


12.32:1


11.47:1 forward; 15.63:1 reverse


Ignition


NA


Electronic


Battery


(8) 6-volt Flooded Lead Acid


12-volt 500 CCA 105 min Reserve


Charger


Onboard, automatic, computer-controlled 48-volt DC, 17 amp, UL and CUL listed


NA


Headlights


(2) 37.5 Watt Halogen


(2) 37.5 Watt Halogen


Fuel Delivery System


NA


Electronic Fuel Injection (EFI)


Fuel Capacity


NA


4.6 gal (17.4 L)


Steering Mechanism


Self-adjusting Rack and Pinion


Self-adjusting Rack and Pinion


Suspension (Front)


Independent leaf spring with dual hydraulic shocks


Independent leaf spring with dual hydraulic shocks


Suspension (Rear)


Independent leaf spring with dual hydraulic shocks


Independent leaf spring with dual hydraulic shocks


Brakes


4-wheel, mechanical drum


4-wheel, mechanical drum


Park Brake


Foot Operated, Multi-lock


Foot Operated, Multi-lock


Body (Front & Finish)


ArmorFlex with automotive paint/clearcoat


ArmorFlex with automotive paint/clearcoat


Body (Frame and Rear)


ArmorFlex with automotive paint/clearcoat


ArmorFlex with automotive paint/clearcoat


Tires (Front)


18 x 8.50-8, 6-ply rated, premium tread


18 x 8.50-8, 6-ply rated, premium tread


Tires (Rear)


18 x 8.50-8, 6-ply rated, premium tread


18 x 8.50-8, 6-ply rated, premium tread


Wheelbase


131.5 in (334 cm)


131.5 in (334 cm)


Overall Height


48 in (121.9 cm)


48 in (121.9 cm)


Overall Length


157 in (398.8 cm)


157 in (398.8 cm)


Ground Clearance
(Differential)


4.5 in (11.4 cm)


4.5 in (11.4 cm)


Max Width (w/o Mirrors)


47.3 in (120.1 cm)


47.3 in (120.1 cm)


Total Vehicle Capacity


1500 lb (680.3 kg)


1500 lb (680.3 kg)


Seating


8


8


Speed


15-17 mph (24-27 km/h)


15-17 mph (24-27 km/h)


Warranty


4 yr limited battery warranty;
3 yr limited powertrain/frame;
2 yr limited remaining vehicle


3 yr/3000 hr limited powertrain/frame;
2 yr limited remaining vehicle
