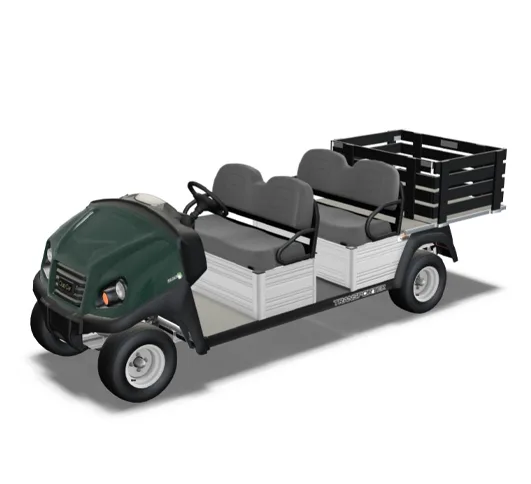

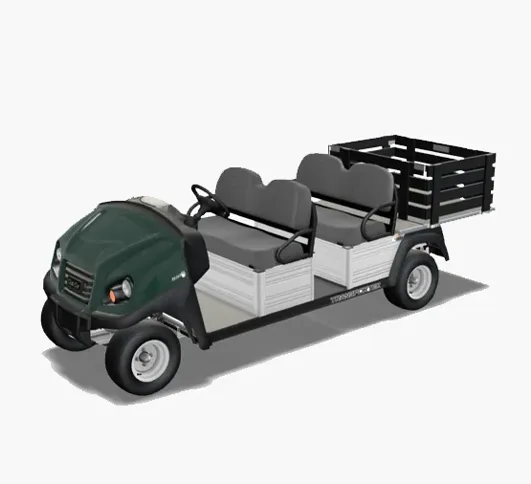

Club Car^® Transporter 4
Petrol

ENGINE Kohler, 4-cycle
DISPLACEMENT 429 cc
CYLINDERS Single
VALVING Overhead Cam
COOLING Air Cooled
HORSEPOWER 14.5 hp (10.8 kW) rated @ 3600 RPM per SAE J1940
MAX TORQUE (28.3 N-m) rated @ 2800 RPM
LUBRICATION / OIL FILTER Splash lubrication
GOVERNOR Ground Speed
FUEL DELIVERY SYSTEM Electronic Fuel Injection (EFI)
FUEL CAPACITY 20.8 L
TRANSMISSION Continuously Variable Transmission (CVT)
GEAR SELECTION Forward/Neutral/Reverse
GEAR RATIO 11.47:1 forward; 15.63:1 reverse
IGNITION Electronic
BATTERY 12V 500 CCA 105min Reserve
HEADLIGHTS Two 37.5-Watt Halogen
STEERING Self-adjusting Rack and Pinion
SUSPENSION (FRONT) Independent leaf spring with dual hydraulic shocks
SUSPENSION (REAR) Semi-Independent leaf spring with dual hydraulic shocks
BRAKES 4-wheel Mechanical Drum
PARK BRAKE Foot Operated, Multi-lock
TIRES (FRONT) 20 x 10-10, 6-ply
TIRES (REAR) 20 x 10-10, 6-ply
SEATING CAPACITY 6 w/ Fold Down Rear Seat
WHEELBASE 251.7 cm
OVERALL HEIGHT 119.6 cm
OVERALL LENGTH 356.1 cm w/ cargo bed
MAX WIDTH (W/O MIRRORS) 127.7 cm
GROUND CLEARANCE 13.2 cm
TRACK WIDTH (FRONT) 92.9 cm
TRACK WIDTH (REAR) 100.3 cm
CARGO BED LxWxH 93.9 x 120.6 x 26.6 cm
VEHICLE CURB WEIGHT 422.7 kg
BED LOAD CAPACITY 136.1 kg
TOTAL VEHICLE CAPACITY 680.4 kg
TOWING CAPACITY 680.3 kg
COMBINATION RATED CAPACITY 680.3 kg
SPEED 19-27 kph
WARRANTY - POWERTRAIN 3 year limited powertrain and frame warranty
WARRANTY - VEHICLE 2 year limited remaining vehicle

Club Car^® Transporter 4
Electric HP

MOTOR 48-Volt 3-Phase AC
CONTROLLER 400 Amp - Solid State
HORSEPOWER 8 hp (6 kW), Peak 16 hp (11.7 kW)
TRANSMISSION Direct drive, double reduction helical gear
GEAR SELECTION Forward/Neutral/Reverse
GEAR RATIO 12.32:1
BATTERY Eight (8) - 6 V Flooded Lead Acid
CHARGER DeltaQ QuiQ (1 kW High Frequency)
HEADLIGHTS Two 37.5-Watt Halogen
STEERING Self-adjusting Rack and Pinion
SUSPENSION (FRONT) Independent leaf spring with dual hydraulic shocks
SUSPENSION (REAR) Semi-Independent leaf spring with dual hydraulic shocks
BRAKES 4-Wheel Mechanical Drum
PARK BRAKE Foot Operated, Multi-lock
TIRES (FRONT) 20 x 10-10, 6-ply
TIRES (REAR) 20 x 10-10, 6-ply
SEATING CAPACITY 6 w/ Fold Down Rear Seat
WHEELBASE 251.7cm
OVERALL HEIGHT 119.6cm
OVERALL LENGTH 356.1 cm w/ cargo bed
MAX WIDTH (W/O MIRRORS) 127.7cm
GROUND CLEARANCE 14.2cm
TRACK WIDTH (FRONT) 92.9cm
TRACK WIDTH (REAR) 100.3cm
CARGO BED LxWxH 93.9 x 120.6 x 26.6 cm
VEHICLE CURB WEIGHT 677.6 kg
BED LOAD CAPACITY 136.1 kg
TOTAL VEHICLE CAPACITY 680.3 kg
TOWING CAPACITY 680.3 kg
COMBINATION RATED CAPACITY 680.3 kg
SPEED 8-27 kph
WARRANTY - BATTERY 4-year limited battery warranty
WARRANTY - POWERTRAIN 3-year limited powertrain and frame warranty
WARRANTY - VEHICLE 2 year limited remaining vehicle

Club Car^® Transporter 4
Electric

MOTOR 48-Volt DC
CONTROLLER 500 Amp - Solid State
HORSEPOWER 3.7 hp (2.7kW) rated, Peak 20 hp (14.9 kW)
MAX TORQUE 71 ft-lbs (96.2 N-m) rated @ 1450 rpm
TRANSMISSION Direct drive, double reduction helical gear
GEAR SELECTION Forward/Neutral/Reverse
BATTERY Eight (8) - 6 V Flooded Lead Acid
CHARGER DeltaQ QuiQ (1 kW High Frequency)
HEADLIGHTS Two 37.5-Watt Halogen
STEERING Self-adjusting Rack and Pinion
SUSPENSION (FRONT) Independent leaf spring with dual hydraulic shocks
SUSPENSION (REAR) Semi-Independent leaf spring with dual hydraulic shocks
BRAKES 4-Wheel Mechanical Drum
PARK BRAKE Foot Operated, Multi-lock
TIRES (FRONT) 20 x 10-10, 6-ply
TIRES (REAR) 20 x 10-10, 6-ply
BODY (FRONT & FINISH) ArmorFlex with automotive paint/clearcoat
BODY (REAR) Aluminium
SEATING CAPACITY 4 w/ Cargo Bed; 6 w/ Fold Down Rear Seat
WHEELBASE 99.1 in (251.7 cm)
OVERALL HEIGHT 119.6cm
OVERALL LENGTH 356.1 cm w/ cargo bed; 374.7 cm w/ fold-down rear seat
MAX WIDTH (W/O MIRRORS) 127.7cm
GROUND CLEARANCE 14.2cm
TRACK WIDTH (FRONT) 92.9cm
TRACK WIDTH (REAR) 100.3cm
CARGO BED LxWxH 93.9 x 120.6 x 26.6 cm
VEHICLE CURB WEIGHT 677.6 kg
BED LOAD CAPACITY 136.1 kg
TOTAL VEHICLE CAPACITY 680.3 kg
TOWING CAPACITY 680.3 kg
COMBINATION RATED CAPACITY 680.3 kg
SPEED 8-27 kph
WARRANTY - BATTERY 4-year limited battery warranty
WARRANTY - POWERTRAIN 3-year limited powertrain and frame warranty
WARRANTY - VEHICLE 2 year limited remaining vehicle
