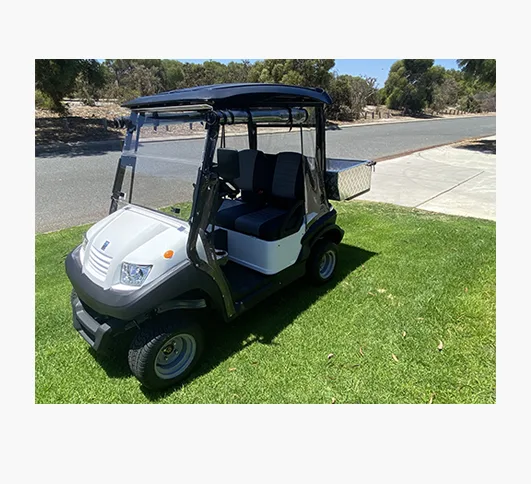

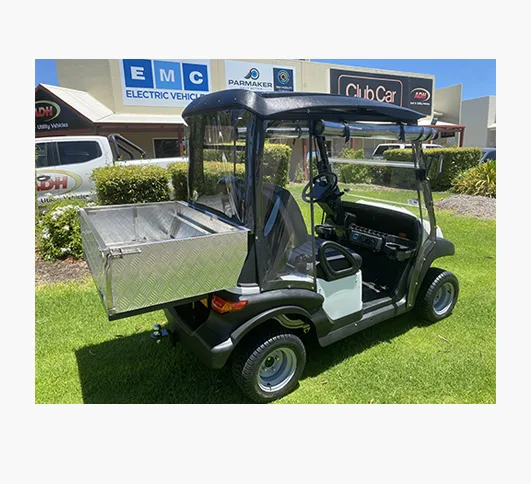

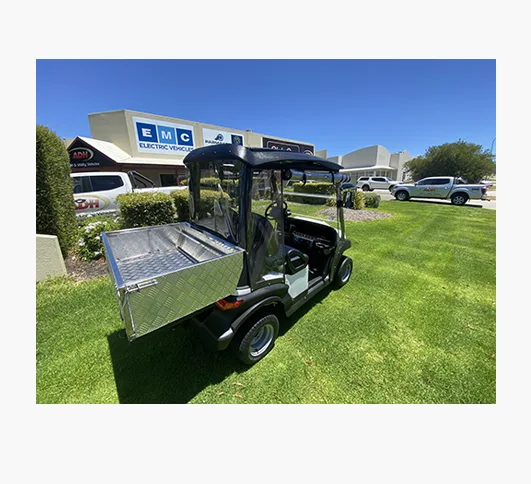

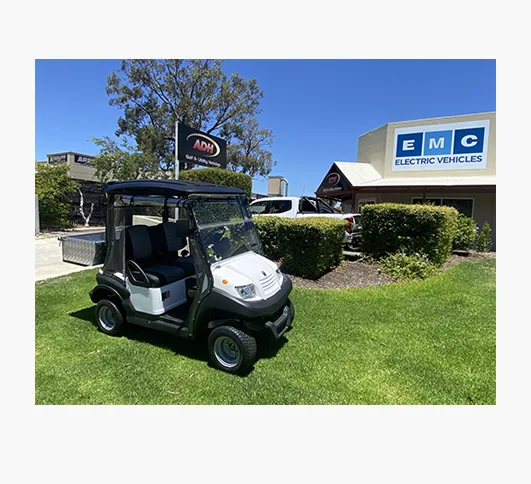

EMC Vantage® SWB Utility Vehicle
SPECIFICATION:
ENGINE/MOTOR TYPE 48-volt DC
CONTROLLER 400 Amp - Solid State
HORSEPOWER (RATED) 5.0 hp (3.8 kW) rated
TRANSMISSION Direct drive, double reduction helical gear
GEAR SELECTION Forward/Neutral/Reverse
GEAR RATIO 12.49:1
BATTERY Eight 6-volt Flooded Lead Acid
CHARGER Delta Q (650 W High Frequency)
HEADLIGHTS Two Halogen
STEERING MECHANISM Self-adjusting Rack and Pinion
SUSPENSION (FRONT) Independent leaf spring with dual hydraulic shocks
SUSPENSION (REAR) Independent leaf spring with dual hydraulic shocks
BRAKES Mechanical Drum Rear
PARK BRAKE Hand Operated, Multi-lock
BODY Automotive paint/clear coat
CHASSIS FRAME Steel
TIRES (FRONT) 18 x 8.5-8, 4-ply
TIRES (REAR) 18 x 8.5-8, 4-ply
OVERALL HEIGHT 1800 mm
OVERALL LENGTH 2680 mm
BED L x W x H 800mm x 1100mm x 200mm
MAX WIDTH (W/O MIRRORS) 1180mm
TOTAL VEHICLE CAPACITY 370 kg
SPEED 15-17 mph (24-27 km/h)
Warranty
2 YEAR Limited battery warranty
2 YEAR Limited powertrain/frame
2 YEAR Limited remaining vehicle
* Vehicles specifications apply to the base model and may not reflect all selected options or accessories.
