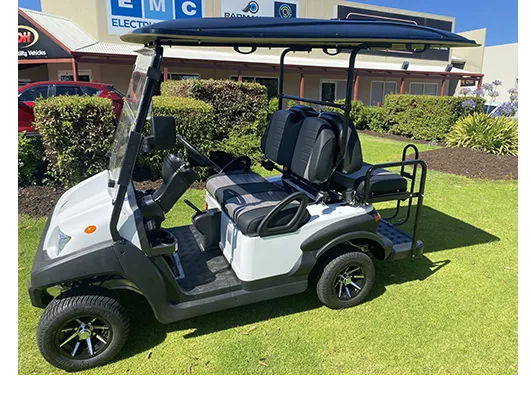

EMC Vantage 4 Seat Transporter
SPECIFICATION:
MOTOR 5.0kW AC Electric - 6.7hp
BATTERY CHARGER Integrated On-board Smart Charger
MAX SPEED 20km/h
MAX CHARGE TIME 8hr
RANGE (LOADED) > 80km Fully Loaded
GEARS Forward and Reverse
TURNING CIRCLE 3.5m
SEATING 4
VEHICLE WEIGHT 475kgs (Inc. Batteries)
REAR TRAY LOAD CAPACITY 150kgs
DIMENSIONS L 2920mm, W 1180mm, H 1980mm
GROUND CLEARANCE 120mm
CHASSIS / FRAME Aluminium Alloy Beam
BODY PP Plastic front and rear body
ROOF Moulded plastic
IMPACT Reinforced front and rear bumpers
STEERING Single-stage rack & pinion steering system, Automatic rocker compensating function
FRONT & REAR SUSPENSION Front Independent Suspension and rear taper leaf spring + cylinder hydraulic shock absorber
BRAKE SYSTEM 4-Wheel Hydraulic Drum Brake
PARK BRAKE Hand Brake
